Contains information about an executable image or shared library. More...

#include <module_info.hpp>

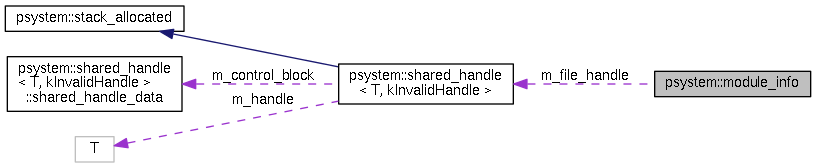

Collaboration diagram for psystem::module_info:

Construction / Destruction
	module_info (psystem::shared_handle<> const &file_handle, CREATE_PROCESS_DEBUG_INFO const &info) noexcept
	Construct a module_info instance for a process's executable. More...

	module_info (psystem::shared_handle<> const &file_handle, LOAD_DLL_DEBUG_INFO const &info) noexcept
	Construct a module_info instance for a shared library. More...

	module_info (module_info &&o) noexcept
	Move from an object of this type. More...

	~module_info () noexcept
	Clean up resources used by the module_info instance.

Public Interface
address_t	get_base_of_image () const noexcept
	Access the base memory address for this module. More...

std::string const &	get_file_name () const noexcept
	Access the module's full file name. More...

std::string const &	get_name () const noexcept
	Access the module's base name. More...

Private Utilites
static void	init_file_name (HANDLE file_handle, std::string *out) noexcept
	Lazy initialization used by the get_file_name() method. More...

static void	init_name (std::string const &file_name, std::string *out) noexcept
	Lazy initialization used by the get_name() method. More...

Member Data
psystem::shared_handle	m_file_handle
	Shared ownership of the handle to the memory-mapped module.

address_t	m_base_of_image
	The base memory address into the module's data.

std::string	m_file_name
	The file name of the library / executable that defines this module. More...

std::once_flag	m_file_name_lock
	Mutex for lazy generation of module_info::m_file_name. More...

std::string	m_name
	The brief name of the module. More...

std::once_flag	m_name_lock
	Mutex for lazy generation of module_info::m_name. More...

Detailed Description

Contains information about an executable image or shared library.

In order to have a useful debugging experience, a debugger needs to be aware of all the modules used by an application, as well as where in memory they reside. This provides information about individual symbols, as well as a more reliable stack trace.

Author: Matt Bisson

Date: 5 August, 2014

Since: PSystem 2.0

Version: PSystem 2.0

Todo:

Get module names

Move operations

Pass in needed data to be more platform compatible?

Constructor & Destructor Documentation

psystem::module_info::module_info	(	psystem::shared_handle<> const &	file_handle,
		CREATE_PROCESS_DEBUG_INFO const &	info
	)

explicitnoexcept

Construct a module_info instance for a process's executable.

Parameters

[in]	file_handle	The handle to the file that relates to this code module.
[in]	info	The full set of information about the module.

psystem::module_info::module_info	(	psystem::shared_handle<> const &	file_handle,
		LOAD_DLL_DEBUG_INFO const &	info
	)

explicitnoexcept

Construct a module_info instance for a shared library.

Parameters

[in]	file_handle	The handle to the file that relates to this code module.
[in]	info	The full set of information about the module.

psystem::module_info::module_info ( module_info && o )

noexcept

Move from an object of this type.

Parameters

[in,out] o The instance from which data will be moved.

Member Function Documentation

address_t psystem::module_info::get_base_of_image ( ) const

noexcept

Access the base memory address for this module.

This information is useful for determining symbol information based on a memory address (e.g., a PC location in a stack trace). Once the module is determined, the symbol information can be gathered.

Returns: A memory address to the loaded module (as it exists in the debuggee process's address space).

std::string const & psystem::module_info::get_file_name ( ) const

noexcept

Access the module's full file name.

Returns: The path and name of the file that makes up this module. The return value is valid until this instance is destroyed.

std::string const & psystem::module_info::get_name ( ) const

noexcept

Access the module's base name.

Returns: The "base" name of the module. This is not a full path. The return value is valid until this instance is destroyed.

void psystem::module_info::init_file_name	(	HANDLE	file_handle,
		std::string *	out
	)

staticprivatenoexcept

Lazy initialization used by the get_file_name() method.

Given a file handle, this populates the out parameter with the name of that file.

Parameters

[in]	file_handle	An open file to examine.
[in,out]	out	The buffer to receive the name associated with `file_handle`. This may be `nullptr` (the method does nothing).

Warning: Using GetFinalPathNameByHandle(), a Vista and later API.

void psystem::module_info::init_name	(	std::string const &	file_name,
		std::string *	out
	)

staticprivatenoexcept

Lazy initialization used by the get_name() method.

Given a file name, this populates the out parameter with the module-name associated with the file.

Parameters

[in]	file_name	The module's file name.
[in,out]	out	The buffer to receive the module name. This may be `nullptr` (the method does nothing).

Member Data Documentation

std::string psystem::module_info::m_file_name

mutableprivate

The file name of the library / executable that defines this module.

This is expensive to generate, and is only created lazily.

std::once_flag psystem::module_info::m_file_name_lock

mutableprivate

Mutex for lazy generation of module_info::m_file_name.

The module_info::m_file_name data is generated by the const member function, get_file_name(). Mutable data altered in a const context should always be protected by a threading guard.

std::string psystem::module_info::m_name

mutableprivate

The brief name of the module.

The name is generated from m_file_name, so it will be generated lazily.

std::once_flag psystem::module_info::m_name_lock

mutableprivate

Mutex for lazy generation of module_info::m_name.

The module_info::m_name data is generated by the const member function, get_name(). Mutable data altered in a const context should always be protected by a threading guard.

The documentation for this class was generated from the following files:

include/psystem/module_info.hpp
src/psystem/module_info.cpp
