platform.hpp File Reference

Master header file for Platform-wide declarations. More...

#include <Windows.h>
#include <cstddef>
#include <cstdint>
#include <string>

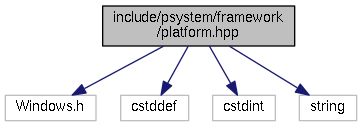

Include dependency graph for platform.hpp:

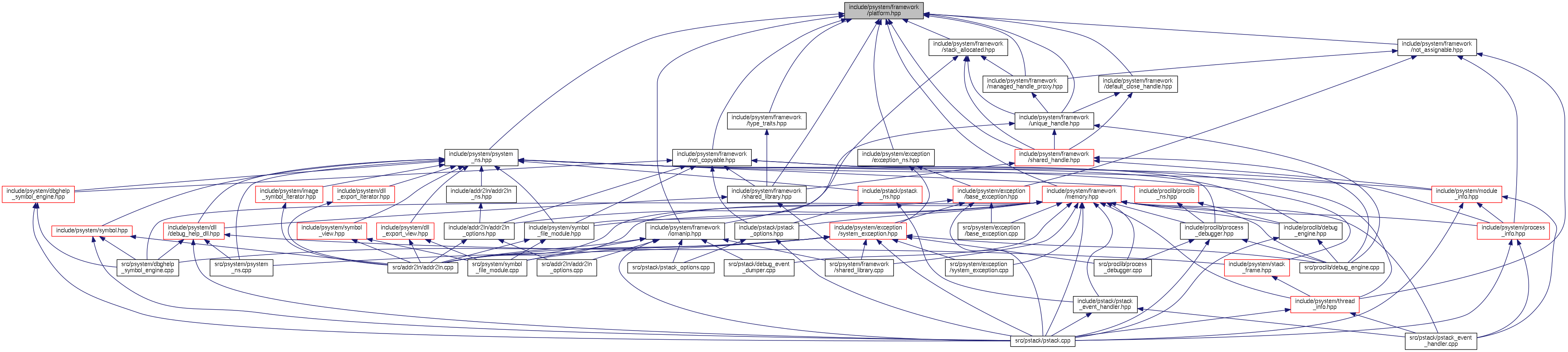

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
	psystem
	Contains the process examination "system" and basic frameworks.

Macros
#define	PSYSTEM_FRAMEWORK_PLATFORM_HPP
#define	_ALLOW_KEYWORD_MACROS
	Tell MSVC to allow certain keywords.
#define	constexpr   const
	Replace keyword with something useful.
#define	noexcept   throw()
	Replace keyword with something useful.

Typedefs
typedef DWORD	psystem::error_t
	Container type for system error codes. More...
typedef std::uintptr_t	psystem::address_t
	Container type for a memory address.
typedef std::ptrdiff_t	psystem::integral_address_t
	A memory address as an integer type (platform specific).
typedef DWORD	psystem::process_id_t
	Data-type that stores a process ID (PID).
typedef DWORD	psystem::thread_id_t
	Data-type that stores a thread ID (TID).
typedef std::string	psystem::tstring
	A std::string implementation based on the UNICODE macro. More...

Macros to Aid Code Flow
#define	LIKELY(cond)    (cond)
	Alters branch prediction in generated code to favor a "true" result. More...
#define	UNLIKELY(cond)   (cond)
	Alters branch prediction in generated code to favor a false result. More...
#define	ASSERT(cond)
	Abort the process if the condition is not satisfied. More...
#define	ASSERT_USING_VAR(var, cond)   ((void)(var))
	Abort the process if the condition is not satisfied, declaring the a variable is used by the assertion. More...

Resource-file Macros
#define	PRERELEASE_FLAGS   0
	Resource flags to indicate a "private" build of the application.
#define	FILE_FLAGS   PRERELEASE_FLAGS
	Resource flags to indicate that the application is a debug version.
#define	STRINGIZE_SINGLE_VERSION_ID(id)   #id
	Make a C-string from a token. More...
#define	MAKE_PRODUCT_VERSION_ID(maj, min, patch)
	Builds a string to represent the product version. More...
#define	MAKE_FILE_VERSION_ID(maj, min, patch, bld)
	Builds a string to represent the version of a specific file. More...

Detailed Description

Master header file for Platform-wide declarations.

Author

Matt Bisson

Date

5 August, 2014

Since

PSystem 2.0

Version

PSystem 2.0

Copyright

This file is distributed under the University of Illinois Open Source License. See LICENSE.TXT for details.

Todo:

Decide on a consistent approach between TCHAR and char...

Remove "_t" from non-system types.

Note

MSVC does not support the noexcept keyword in 2013. Consequently, we cannot provide defaulted CTORs and DTORs that have an exception specification either as required by the C++ language (see C++ specification 8.4.2). There is a run-time benefit associated with noexcept (and to a lesser extent, throw()), so we'll still try to use it.

Macro Definition Documentation

#define ASSERT

(

cond

)

Abort the process if the condition is not satisfied.

This macro evaluates to nothing unless _DEBUG is defined as a preprocessor token. If the condition evaluates to false, the macro prints the condition as well as the source code location to stderr.

Parameters

cond	The (boolean) condition that we assert is always true.

#define ASSERT_USING_VAR	(		var,
			cond
	)		((void)(var))

Abort the process if the condition is not satisfied, declaring the a variable is used by the assertion.

This macro behaves identically to the ASSERT() macro, however it marks a variable as "used" to prevent compilation warnings in non-debug code.

Parameters

var	The name of the variable that the assertion examines.
cond	The (boolean) condition that we assert is always true.

#define LIKELY

(

cond

)

(cond)

Alters branch prediction in generated code to favor a "true" result.

Parameters

cond	A conditional expression that will be evaluated.

#define MAKE_FILE_VERSION_ID	(		maj,
			min,
			patch,
			bld
	)

Value:

STRINGIZE_SINGLE_VERSION_ID(maj)   "."              \
    STRINGIZE_SINGLE_VERSION_ID(min)   "."              \
    STRINGIZE_SINGLE_VERSION_ID(patch) " (build "       \
    STRINGIZE_SINGLE_VERSION_ID(bld)   ")"

Builds a string to represent the version of a specific file.

Parameters

[in]	maj	Major version number (expects an integer).
[in]	min	Minor version number (expects an integer).
[in]	patch	Patch level (expects an integer).
[in]	bld	Build ID / number (expects an integer).

#define MAKE_PRODUCT_VERSION_ID	(		maj,
			min,
			patch
	)

Value:

STRINGIZE_SINGLE_VERSION_ID(maj) "."        \
    STRINGIZE_SINGLE_VERSION_ID(min) "."        \
    STRINGIZE_SINGLE_VERSION_ID(patch)

Builds a string to represent the product version.

Parameters

[in]	maj	Major version number (expects an integer).
[in]	min	Minor version number (expects an integer).
[in]	patch	Patch level (expects an integer).

#define STRINGIZE_SINGLE_VERSION_ID

(

id

)

#id

Make a C-string from a token.

This is required for the resource file. It seems that some (not all) fields require an extra indirection to construct the desired string. When passing a pre-processor constant to one of the MAKE_xxx_VERSION_ID macros, the result becomes the names of the macros passed in instead of the version numbers that those macros define.

Parameters

[in]

id

The token to form into a string.

#define UNLIKELY

(

cond

)

(cond)

Alters branch prediction in generated code to favor a false result.

Parameters

cond	A conditional expression that will be evaluated.
