pstack.cpp File Reference

The main entry point for the PStack executable. More...

#include <psystem/framework/memory.hpp>
#include <psystem/framework/iomanip.hpp>
#include <psystem/dll/debug_help_dll.hpp>
#include <psystem/dbghelp_symbol_engine.hpp>
#include <psystem/module_info.hpp>
#include <psystem/module_address_map.hpp>
#include <psystem/process_info.hpp>
#include <psystem/symbol.hpp>
#include <psystem/thread_info.hpp>
#include <psystem/exception/base_exception.hpp>
#include <psystem/exception/system_exception.hpp>
#include <psystem/exception/ui_exception.hpp>
#include <pstack/debug_event_dumper.hpp>
#include <pstack/pstack_event_handler.hpp>
#include <pstack/pstack_options.hpp>
#include <proclib/debug_engine.hpp>
#include <proclib/demangle/demangle.hpp>
#include <proclib/process_debugger.hpp>
#include <algorithm>
#include <iostream>

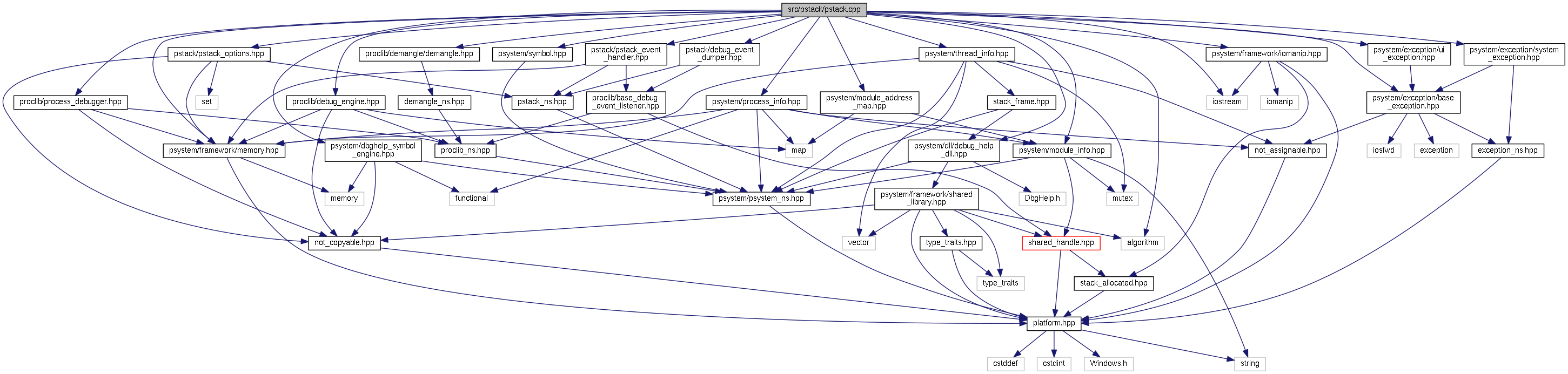

Include dependency graph for pstack.cpp:

Namespaces
	anonymous_namespace{pstack.cpp}
	Functions that are local to this compilation unit.

Functions
template<typename SymbolEngine >
void	anonymous_namespace{pstack.cpp}::output_stack_frame (SymbolEngine &symbol_eng, psystem::module_address_map const &modules, psystem::stack_frame const &frame)
	Prints a single stack from a stack trace to the console. More...
template<typename SymbolEngine >
void	anonymous_namespace{pstack.cpp}::output_stack_trace (SymbolEngine &symbol_eng, psystem::process_info *const proc, psystem::thread_info *const thrd)
	Prints one thread's call stack to the screen. More...
void	process_pid (proclib::debug_engine &engine, psystem::process_id_t const pid)
	Attach to a process and output stack traces for all threads. More...
int	main (int const argc, char const *argv[])
	The main entry point for the PStack application. More...

Detailed Description

The main entry point for the PStack executable.

Author

Matt Bisson

Date

25 November, 2007 – 5 August, 2014

Since

PStack 1.0

Version

PStack 2.0

Copyright

This file is distributed under the University of Illinois Open Source License. See LICENSE.TXT for details.

Function Documentation

int main	(	int const	argc,
		char const *	argv[]
	)

The main entry point for the PStack application.

See pstack::pstack_options for details on supported command-line options.

Parameters

[in]	argc	The count of command-line arguments.
[in]	argv	The array of strings that specify command-line arguments.

Returns

This is the return code that is passed to the parent process. The value is as follows:

• 0: Successful execution of all specified workflows.
• -1: Invalid command-line option passed.
• -2: An "expected" exception caused a failure to execute the workflow.
• -3: An unexpected exception caused a failure to execute the workflow.
• -4: An unknown error caused a failure to execute the workflow.
• >0: A system-native error occured. The result is the system error code.

Todo:

/I option (scan file for symbols) not implemented.

Todo:

/P option (administrative privs) not implemented.

void process_pid	(	proclib::debug_engine &	engine,
		psystem::process_id_t const	pid
	)

Attach to a process and output stack traces for all threads.

This is really the crux of the PStack application, as it attaches to a process, creates the utilities to analyze debugging symbols, and actually outputs the resulting stack traces.

Parameters

[in]	engine	The debugging "engine" used to attach to a process and read information.
[in]	pid	The system process ID (PID) of the process that will be examined.

Todo:

Document what exceptions this throws (there are many).

It would be nice if a problem with on PID didn't stop execution. Rearrange the exception handling a bit.

Todo:

Debug-only log message here

Todo:

Debug-only log message here
