The main entry point for the Addr2Ln executable. More...

#include <cstring>
#include <psystem/framework/iomanip.hpp>
#include <psystem/framework/memory.hpp>
#include <addr2ln/addr2ln_options.hpp>
#include <psystem/dll_export_iterator.hpp>
#include <psystem/dll_export_view.hpp>
#include <psystem/image_symbol_iterator.hpp>
#include <psystem/symbol.hpp>
#include <psystem/symbol_file_module.hpp>
#include <psystem/symbol_view.hpp>
#include <psystem/exception/base_exception.hpp>
#include <psystem/exception/system_exception.hpp>
#include <psystem/exception/ui_exception.hpp>

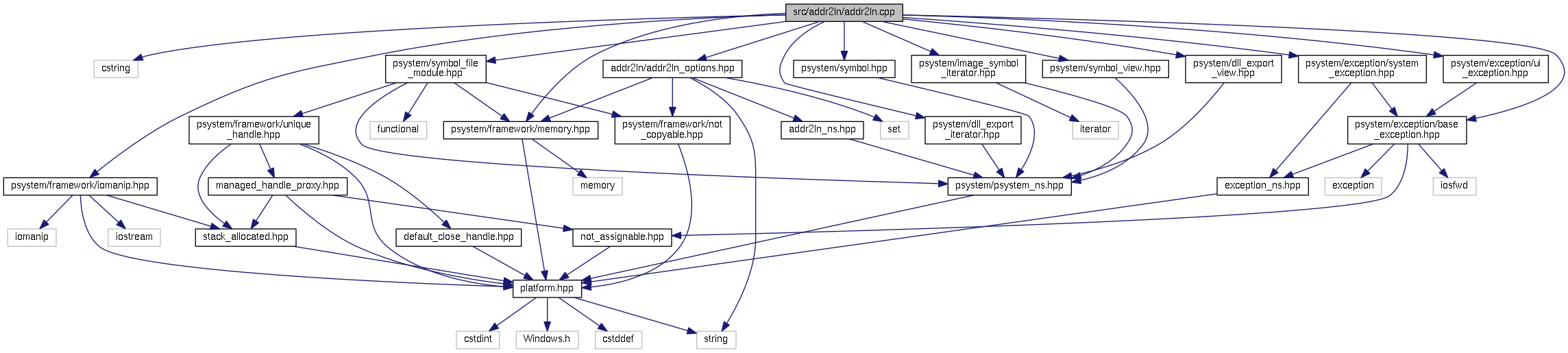

Include dependency graph for addr2ln.cpp:

Functions
static std::unique_ptr< psystem::symbol >	check_debug_symbols (psystem::symbol_view const sym_view, psystem::address_t const module_base, psystem::address_t const address)
	Look for a symbol in a module's debug information. More...

static std::unique_ptr< psystem::symbol >	check_dll_exports (psystem::dll_export_view const exp_view, psystem::address_t const module_base, psystem::address_t const address)
	Assuming a DLL, look for a symbol in the DLL exports table. More...

static void	dump_symbols (std::string const &file_name)
	Open an executable module and dump the list of symbols to `stdout`. More...

static std::unique_ptr< psystem::symbol >	find_symbol (std::string const &file_name, psystem::address_t const *module_base, psystem::address_t const address)
	Given an executable file, find the symbol that resides at the given address. More...

int	main (int argc, char const *argv[])
	The main entry point for the Addr2Ln application. More...

Detailed Description

The main entry point for the Addr2Ln executable.

Author: Matt Bisson

Date: 7 July, 2008 – 4 March, 2016

Since: Addr2ln 0.1

Version: Addr2ln 0.1

Copyright: This file is distributed under the University of Illinois Open Source License. See LICENSE.TXT for details.

Function Documentation

std::unique_ptr< psystem::symbol > check_debug_symbols	(	psystem::symbol_view const *	sym_view,
		psystem::address_t const *	module_base,
		psystem::address_t const	address
	)

static

Look for a symbol in a module's debug information.

Todo:: Remove a bunch of unneeded casts for pointer arithmetic throughout the code.

Parameters

[in]	sym_view	The "view" instance to the debugging symbol information. This may be `nullptr`. If so, the function will interpret this as a no-op.
[in]	module_base	(Optional) A pointer to the address that specifies the base-address for `file_name` if it were loaded (e.g., as a DLL). This may be `nullptr` if you wish to use the "default" base address, which is usually encoded in the module itself.
[in]	address	The address to check for a symbol.

Returns: A pointer to the symbol that was found at (or near) the address, or nullptr if none was found.

Exceptions

psystem::exception::system_exception If the file could not be opened, or if it is not a recognized file type.

std::unique_ptr< psystem::symbol > check_dll_exports	(	psystem::dll_export_view const *	exp_view,
		psystem::address_t const *	module_base,
		psystem::address_t const	address
	)

static

Assuming a DLL, look for a symbol in the DLL exports table.

Parameters

[in]	exp_view	The "view" instance any DLL export information. This may be `nullptr`. If so, the function will interpret this as a no-op.
[in]	module_base	(Optional) A pointer to the address that specifies the base-address for `file_name` if it were loaded (e.g., as a DLL). This may be `nullptr` if you wish to use the "default" base address, which is usually encoded in the module itself.
[in]	address	The address to check for a symbol.

Returns: A pointer to the symbol that was found at (or near) the address, or nullptr if none was found.

Exceptions

psystem::exception::system_exception If the file could not be opened, or if it is not a recognized file type.

void dump_symbols ( std::string const & file_name )

static

Open an executable module and dump the list of symbols to stdout.

This is a debugging function. If the specified file does not point to a recognized file type, this method simply throws an exception. If it contains no symbols, the function succeeds, but does not print any output.

Parameters

[in] file_name The file to open, examine, and dump contents.

Exceptions

psystem::exception::system_exception If the file could not be opened, or if it is not a recognized file type.

std::unique_ptr< psystem::symbol > find_symbol	(	std::string const &	file_name,
		psystem::address_t const *	module_base,
		psystem::address_t const	address
	)

static

Given an executable file, find the symbol that resides at the given address.

This function checks both the debugging information and the DLL exports (if either are present).

As a side-effect of this method, the given file may be mapped into memory and un-mapped. The method caches nothing.

Parameters

[in]	file_name	The file to open and examine.
[in]	module_base	(Optional) A pointer to the address that specifies the base-address for `file_name` if it were loaded (e.g., as a DLL). This may be `nullptr` if you wish to use the "default" base address, which is usually encoded in the module itself.
[in]	address	The address to check for a symbol.

Returns: A pointer to the symbol that was found at (or near) the address, or nullptr if none was found.

Exceptions

psystem::exception::system_exception If the file could not be opened, or if it is not a recognized file type.

int main	(	int	argc,
		char const *	argv[]
	)

The main entry point for the Addr2Ln application.

See addr2ln::addr2ln_options for details on supported command-line options.

Parameters

[in]	argc	The count of command-line arguments.
[in]	argv	The array of strings that specify command-line arguments.

Returns

This is the return code that is passed to the parent process. The value is as follows:

0: Successful execution of all specified workflows.
-1: Invalid command-line option passed.
-2: An "expected" exception caused a failure to execute the workflow.
-3: An unexpected exception caused a failure to execute the workflow.
-4: An unknown error caused a failure to execute the workflow.
>0: A system-native error occured. The result is the system error code.
