symbol_file_module.cpp File Reference

Define a class that examines a COFF executable / library image for debugging symbols. More...

#include "psystem/symbol_file_module.hpp"
#include <psystem/framework/iomanip.hpp>
#include <psystem/dll_export_view.hpp>
#include <psystem/symbol_view.hpp>
#include <psystem/exception/system_exception.hpp>

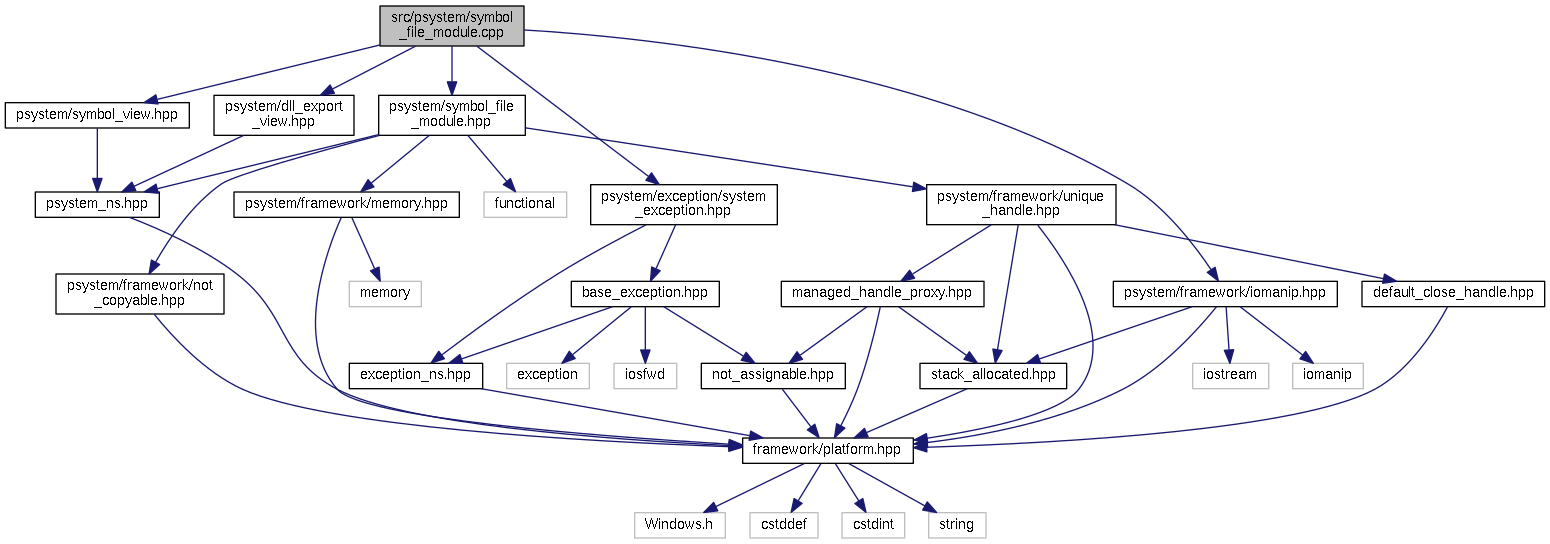

Include dependency graph for symbol_file_module.cpp:

Namespaces
	anonymous_namespace{symbol_file_module.cpp}
	Data local to this compilation unit.
	psystem
	Contains the process examination "system" and basic frameworks.

Macros
#define	PRINT_CHARACTERISTIC_FLAG(flag)
	Define a local macro to analyze and display bit flags. More...

Functions
static void	anonymous_namespace{symbol_file_module.cpp}::print_dos_image_header (IMAGE_DOS_HEADER const &hdr)
	Output details for a DOS executable image to the console. More...
template<typename T >
void	anonymous_namespace{symbol_file_module.cpp}::print_nt_image_header (T const &hdr)
	Output details for an NT executable image to the console. More...
template<typename T >
void	anonymous_namespace{symbol_file_module.cpp}::print_optional_image_header (T const &hdr, bool const is_dll)
	Output "optional" details for an NT executable image to the console. More...

Detailed Description

Define a class that examines a COFF executable / library image for debugging symbols.

Author

Matt Bisson

Date

8 February, 2015

Since

PSystem 2.0

Version

PSystem 2.0

Copyright

This file is distributed under the University of Illinois Open Source License. See LICENSE.TXT for details.

Macro Definition Documentation

#define PRINT_CHARACTERISTIC_FLAG

(

flag

)

Value:

if ((hdr.FileHeader.Characteristics & IMAGE_FILE_##flag)    \
        == IMAGE_FILE_##flag)                                   \
    {                                                           \
        std::cout << #flag " ";                                 \
    }

Define a local macro to analyze and display bit flags.

This macro is only available within the print_nt_image_header() function. It references local variables therein.

Parameters

flag	The IMAGE_FILE flag to output (if found in the mask).
